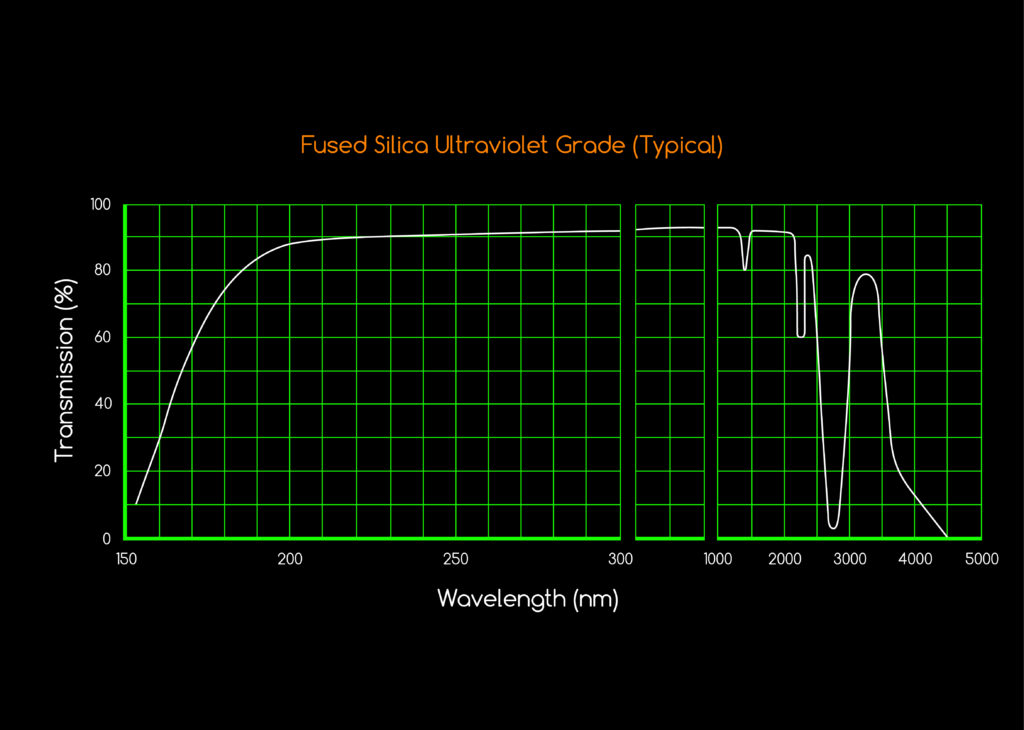

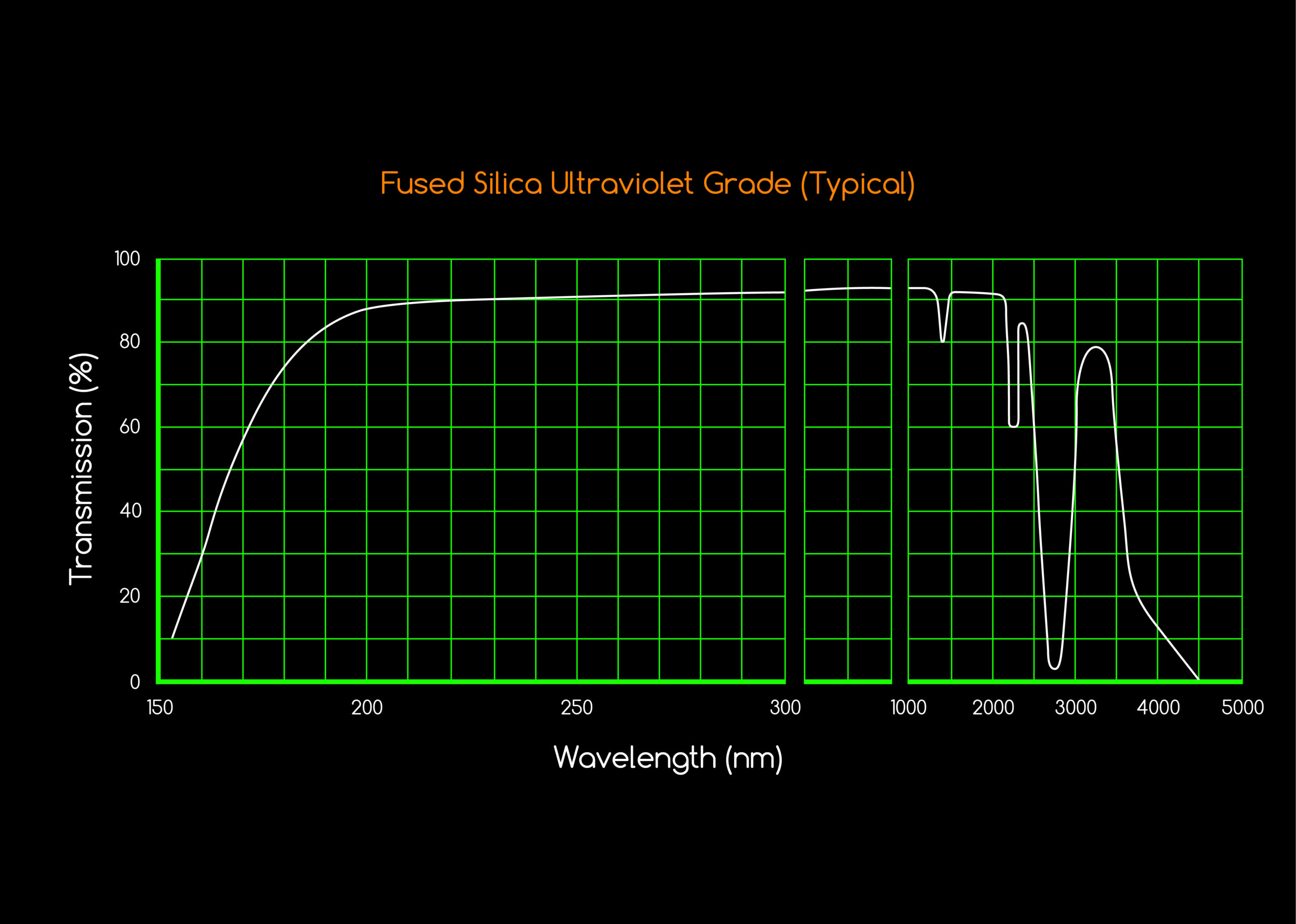

Ultraviolet-Grade Fused Silica Windows transmit light reaching as far down as 160nm, with maximum transmission from 195-2100nm. The broad transmission range from UV-VIS-NIR makes it ideal for UV applications, as well as through the visible spectrum to NIR region. UV Fused Silica also provides a low coefficient of thermal expansion with excellent homogeneity. Due to its durability qualities, Fused Silica is also often used in applications where high laser damage threshold or high heat is required.
Precision Optical Components Produced To Your Specifications
| Standard Specifications | |
|---|---|
| Material | Fused Silica Ultraviolet Grade |
| Dimension Tolerance | +0.1/-0.1mm |
| Thickness Tolerance | +/-0.2mm |
| Scratch/Dig | 60/40 |
| Bevel | Protective Chamfer |
| Coating | As specified |
| If your requirement is outside of our listed specifications, please inquire as our production facility can often quickly and affordably customize off-the-shelf components to a variety of sizes and shapes that will meet standard, precision, or high precision quality. | |
