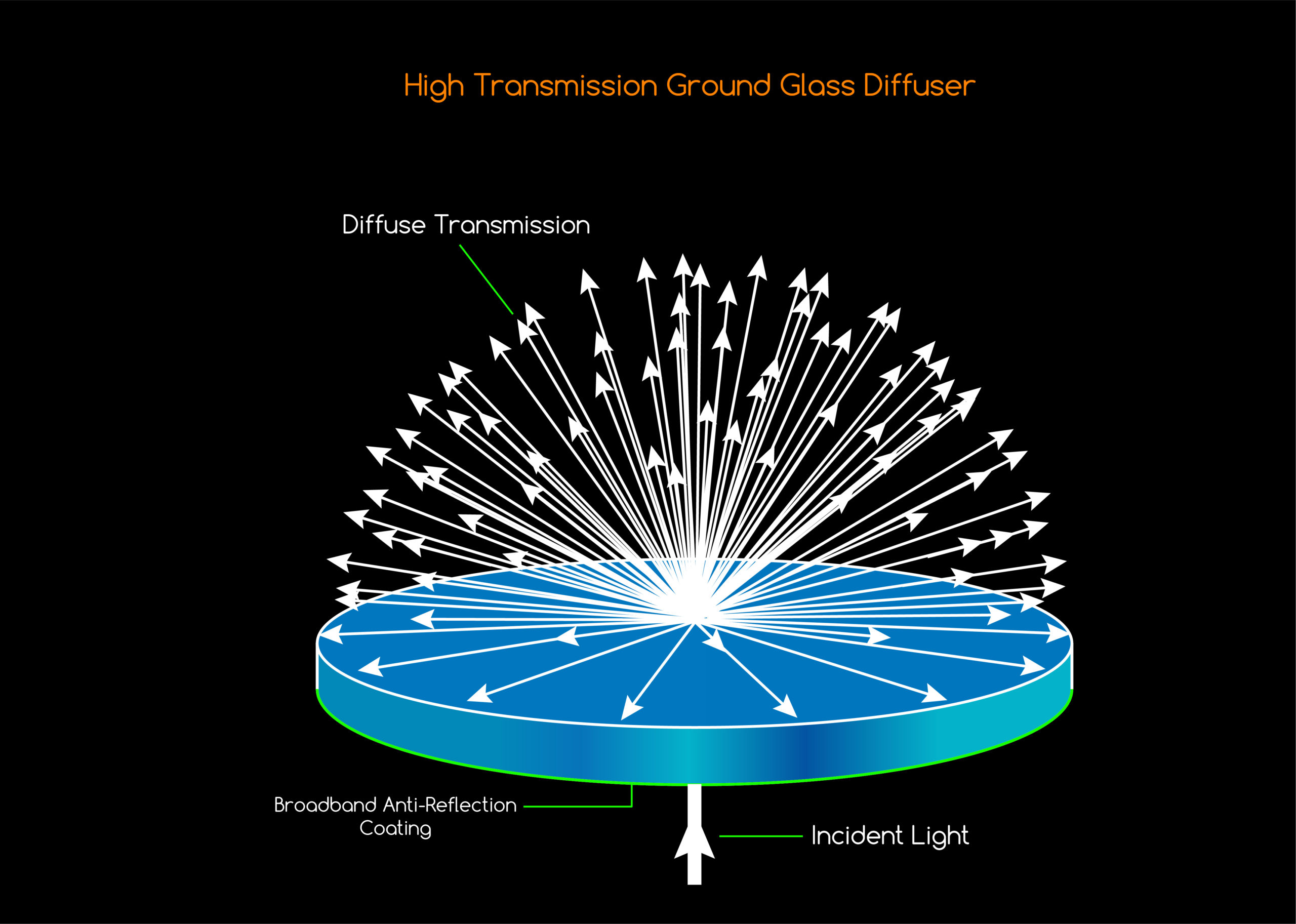

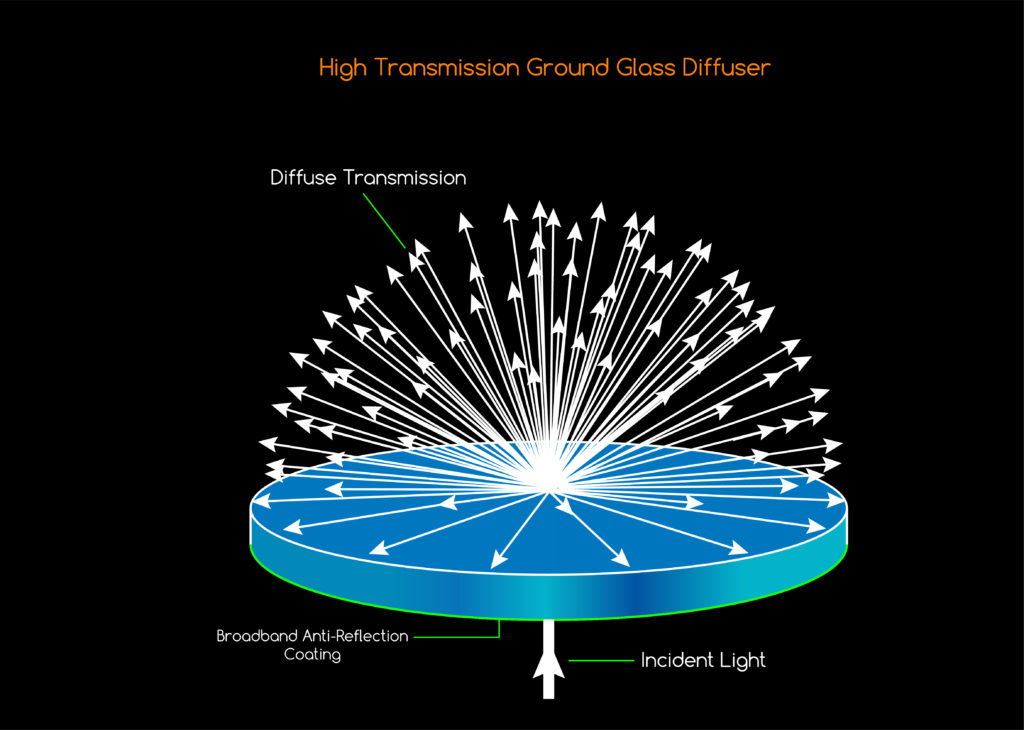

Heli Optical Systems fabricates ground glass diffusers from optical glass in its polished state. This method is preferred over sandblasting as the surface created is more even, with better uniformity. The standard grit used produces a medium diffusion that is ideal for producing evenly distributed light which helps diminish sharp shadows and bright hot spots from illumination. An Anti-Reflection coating is applied on the polished side, providing maximum transmission efficiency for the most demanding applications.
Precision Optical Components Produced To Your Specifications
| Standard Specifications | |
|---|---|
| Material | Optical Glass |
| Dimension Tolerance | +0.1/-0.1mm |
| Thickness Tolerance | +0.2/-0.2mm |
| Scratch/Dig | 60/40 |
| Coating | S1: BBAR coating for visible =/< 0.5% S2: None |
| Notes | S1: Polished S2: Ground |
| If your requirement is outside of our listed specifications, please inquire as our production facility can often quickly and affordably customize off-the-shelf components to a variety of sizes and shapes that will meet standard, precision, or high precision quality. | |
