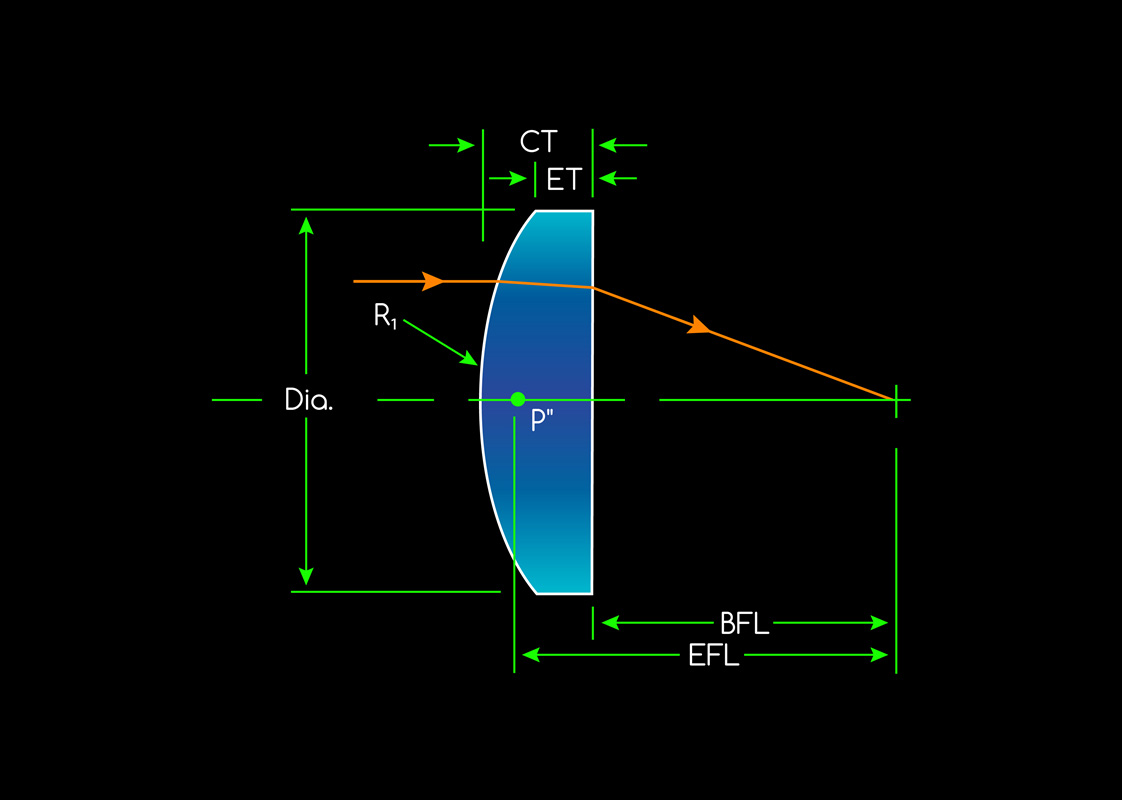

Plano-Convex lenses have one flat surface and one surface that curves outwards. This results in a positive focal length and minimizes spherical aberration in situations where the object and image are placed at unequal distances from the lens. They are a low cost and effective method of collimating and converging light in imaging applications and are the best choice for focusing parallel rays of light to a single point.
Precision Optical Components Produced To Your Specifications
| Standard Specifications | ||||
|---|---|---|---|---|
| Diameter | 3.00 - 5.00 | 5.01 - 25.40 | 25.41 - 40.00 | 40.01 - 75.00 |
| Surface Quality | 40-20 | 40-20 | 60-40 | 80-50 |
| Diameter Tolerance | +0/-0.05 | +0/-0.1 | +0/-0.1 | +0/-0.1 |
| Center Thickness Tolerance | +/-0.2 | +/-0.2 | +/-0.2 | +/-0.2 |
| Edge Thickness Tolerance | Reference | Reference | Reference | Reference |
| Centering Tolerance | 3-5arc mins | 3-5arc mins | 3-5arc mins | 3-5arc mins |
| Note | If your requirement is outside of our listed specifications, please inquire as our production facility can often quickly and affordably customize off-the-shelf components to a variety of sizes and shapes that will meet standard, precision, or high precision quality. | |||
