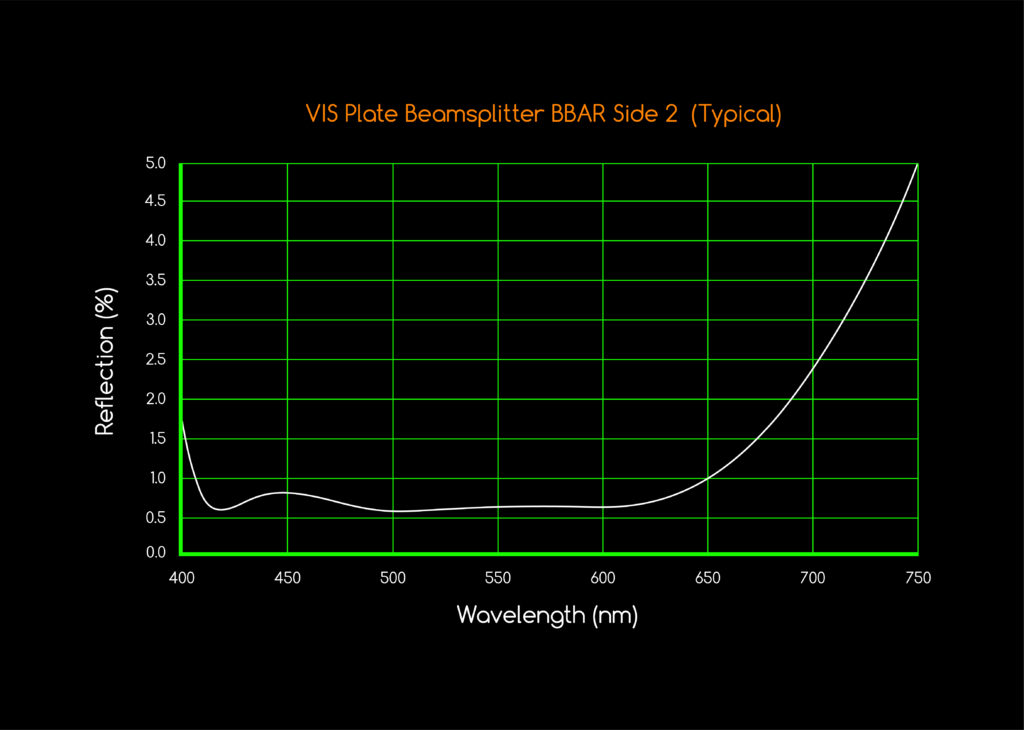

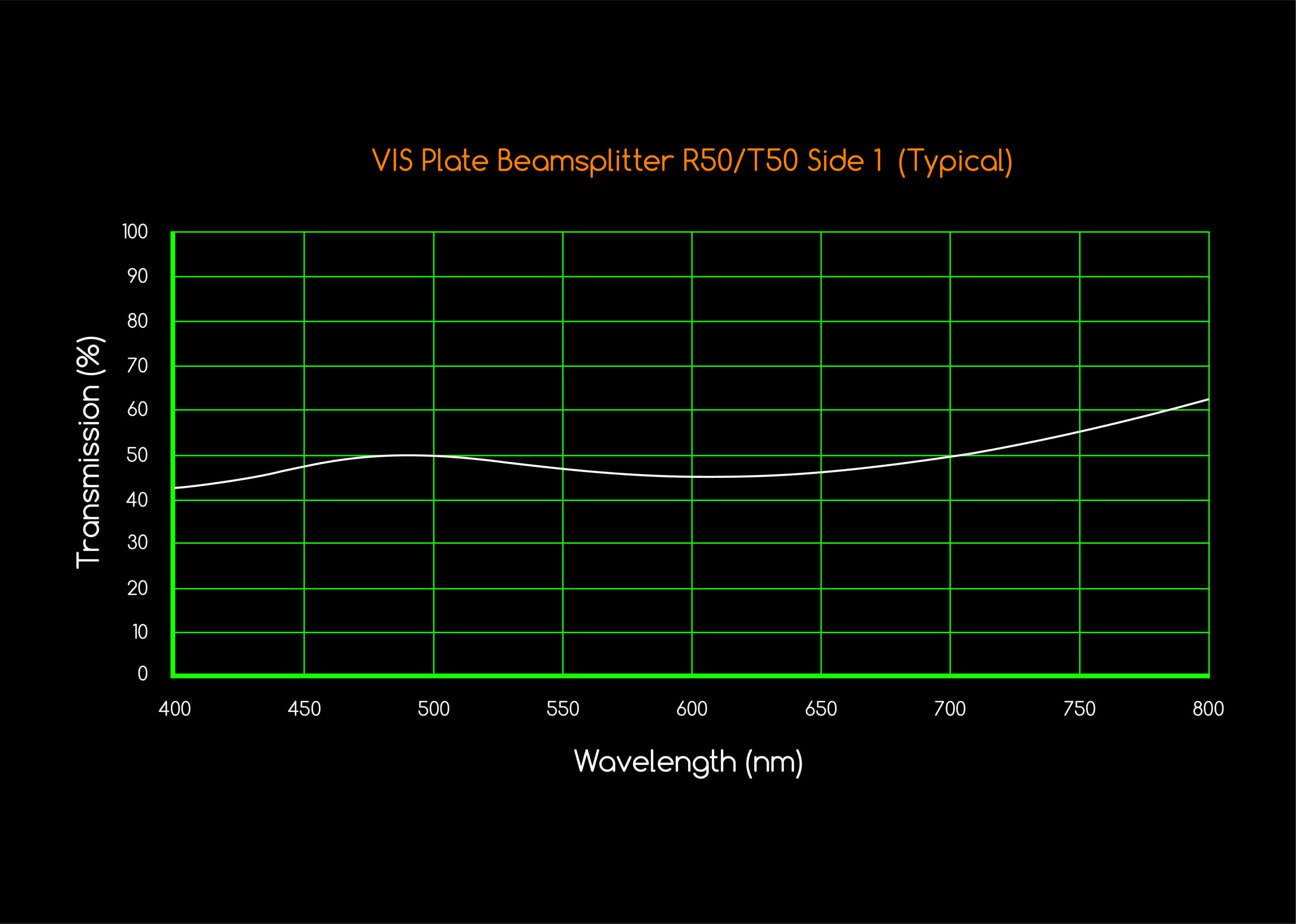

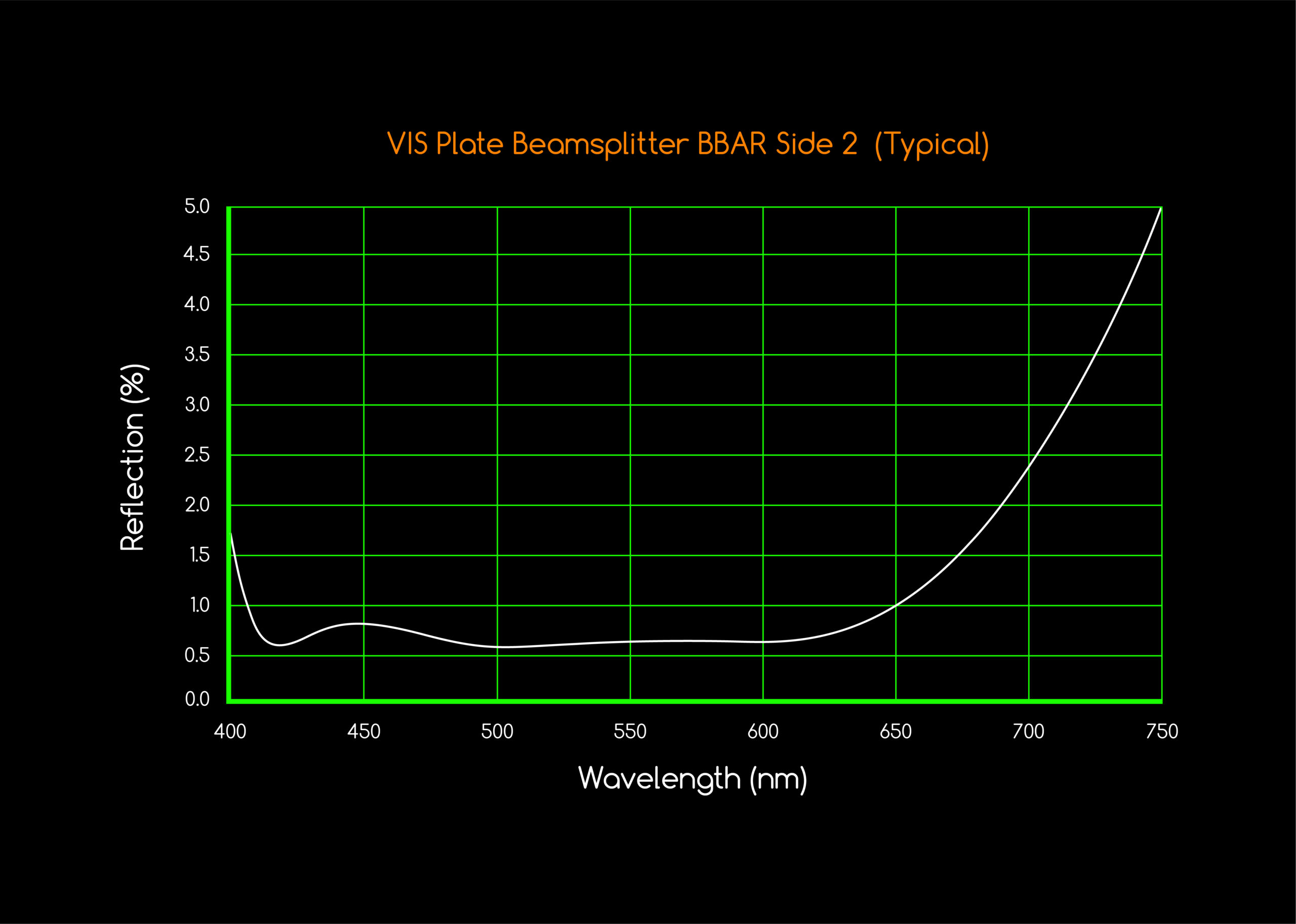

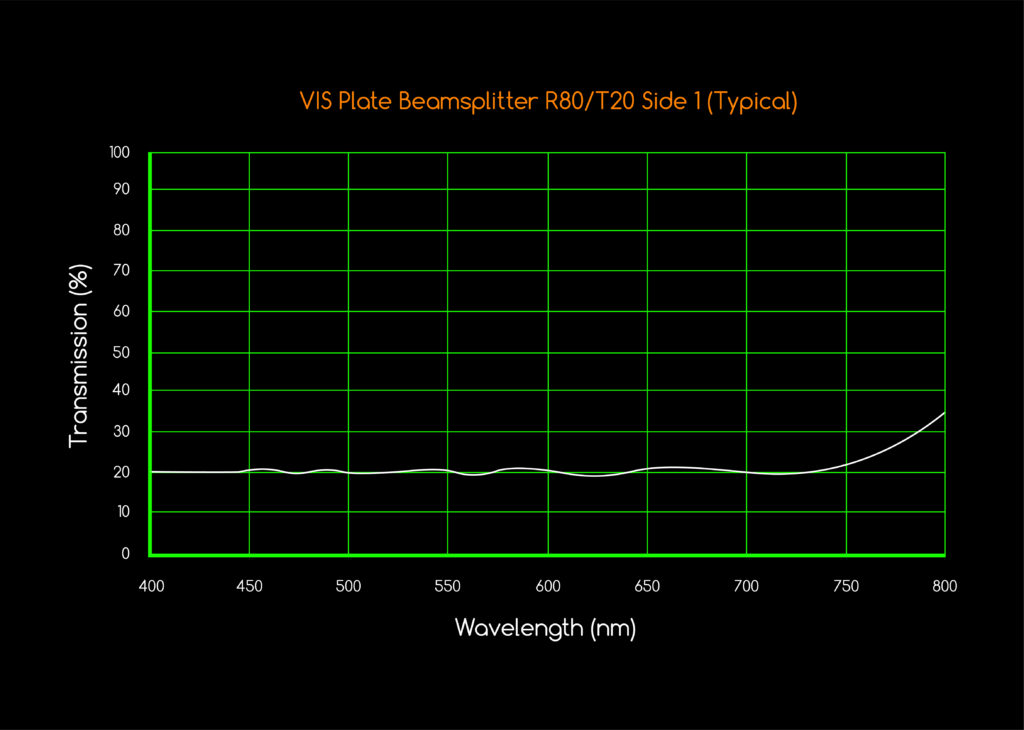

Our standard VIS Plate Beamsplitters are an optimized, lightweight and affordable option for image/light splitting within a 450-650nm wavelength range. Coatings are applied on polished optical substrates using ion assisted deposition to produce tough, durable surfaces. The first surface coating defines the beam splitting transmission and reflection ratios which are available in R50/T50 & R80/T20. All our Plate Beamsplitters are BBAR coated on the second surface to minimize ghosting and to improve overall performance.
Precision Optical Components Produced To Your Specifications
| Standard Specifications | |
|---|---|
| Material | Optical Glass |
| Dimension Tolerance | +0.1/-0.1mm |
| Thickness Tolerance | +0.2/-0.2mm |
| Scratch/dig | 60/40 |

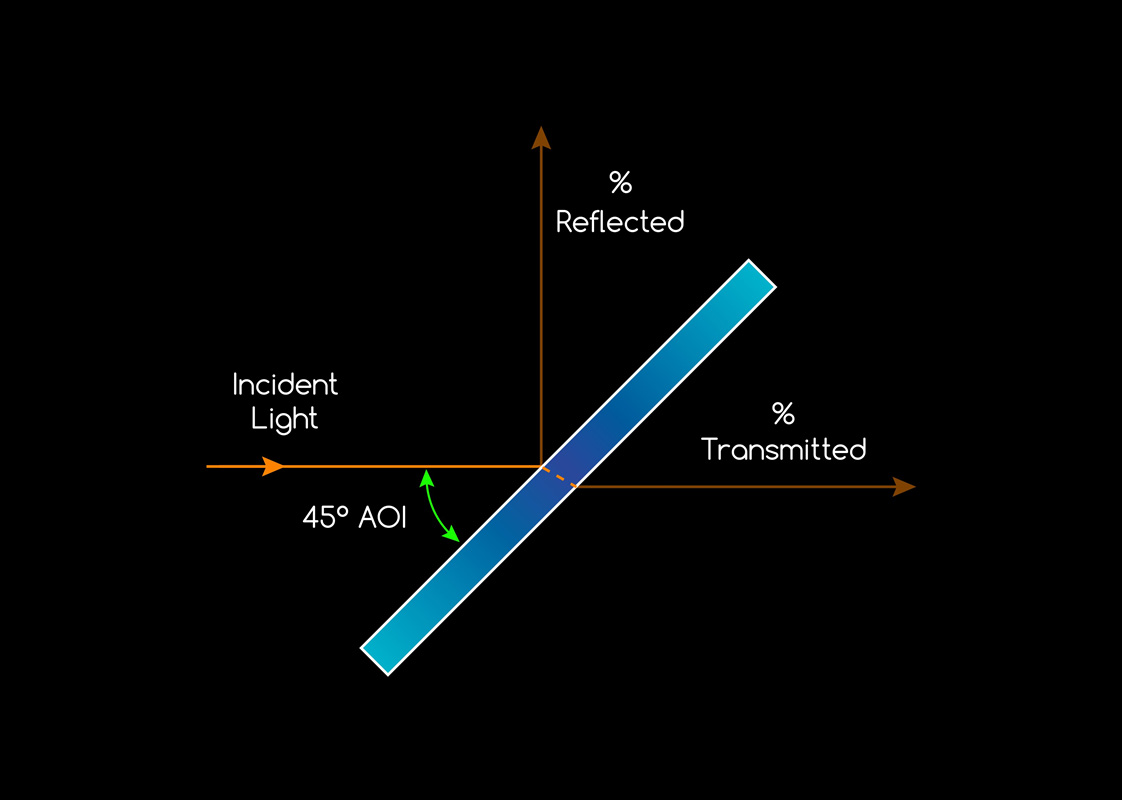

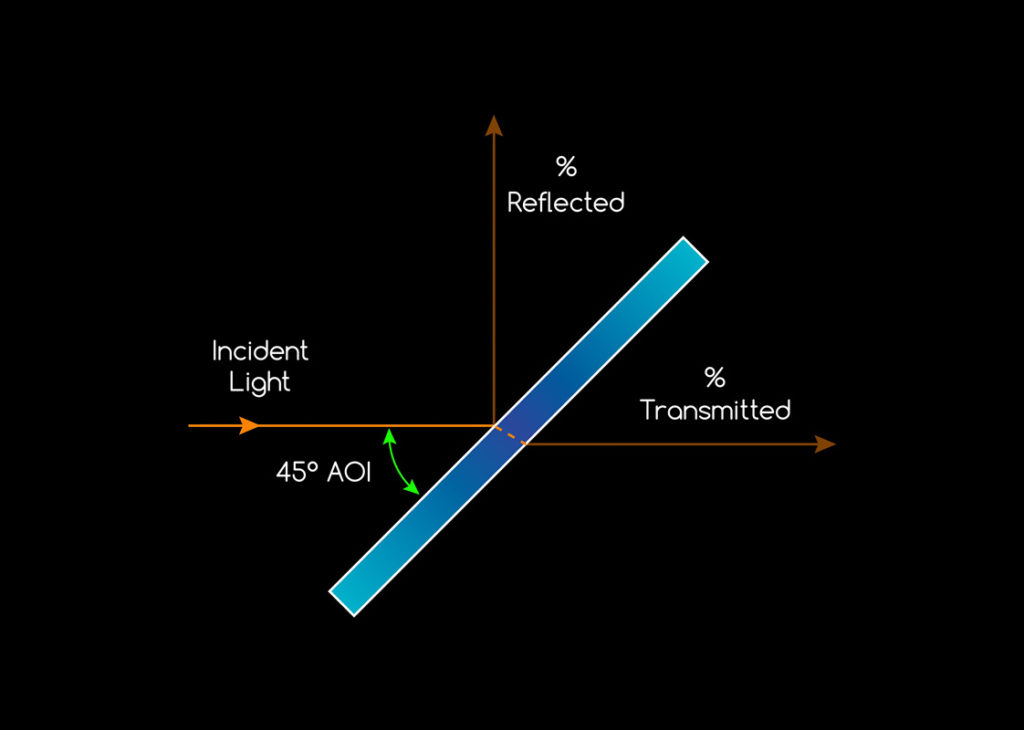

| Coating | 1 side R50/T50 beamsplitter coating for VIS --or-- 1 side R80/T20 beamsplitter coating for VIS --or-- 2nd side AR coating for visible =/< 0.5% Angle of Incidence: 45 degrees @ 450nm to 650nm for all types |
| If your requirement is outside of our listed specifications, please inquire as our production facility can often quickly and affordably customize off-the-shelf components to a variety of sizes and shapes that will meet standard, precision, or high precision quality. | |
