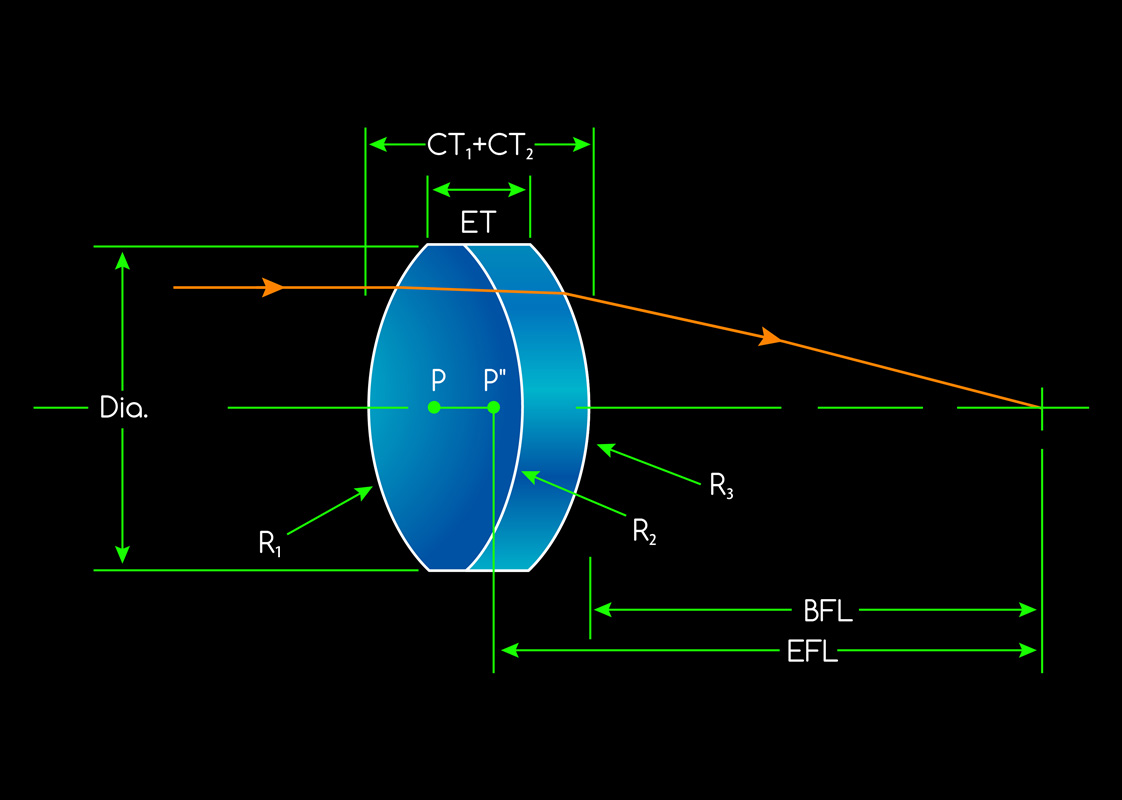

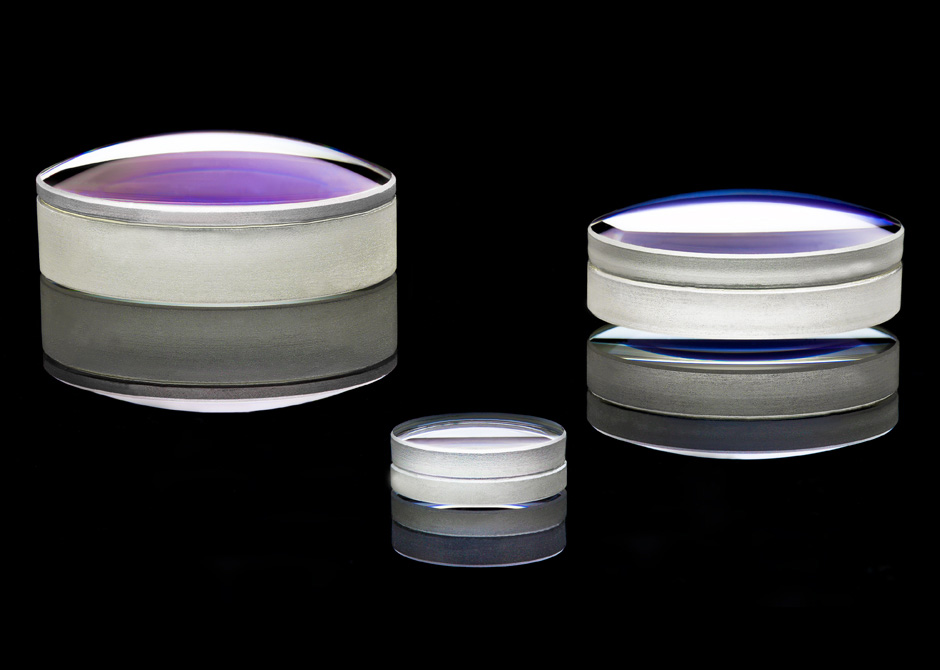

Achromatic doublets are designed to eliminate chromatic and spherical aberrations, hence producing far superior imaging than singlet lenses. They are also utilized in the collimation and focusing of laser beams. Our achromatic doublets usually come anti-reflection coated, providing even sharper and brighter images. Uncoated achromatic doublets available upon request.
Precision Optical Components Produced To Your Specifications
| Standard Specifications | ||||
|---|---|---|---|---|
| Diameter | 3.00 - 5.00 | 5.01 - 25.40 | 25.41 - 40.00 | 40.01 - 75.00 |
| Surface Quality | 40-20 | 40-20 | 60-40 | 80-50 |
| Diameter Tolerance | +0/-0.05 | +0/-0.1 | +0/-0.1 | +0/-0.1 |
| Center Thickness Tolerance | +/-0.2 | +/-0.2 | +/-0.2 | +/-0.2 |
| Edge Thickness Tolerance | Reference | Reference | Reference | Reference |
| Centering Tolerance | 3-5arc mins | 3-5arc mins | 3-5arc mins | 3-5arc mins |
| Note | If your requirement is outside of our listed specifications, please inquire as our production facility can often quickly and affordably customize off-the-shelf components to a variety of sizes and shapes that will meet standard, precision, or high precision quality. | |||
