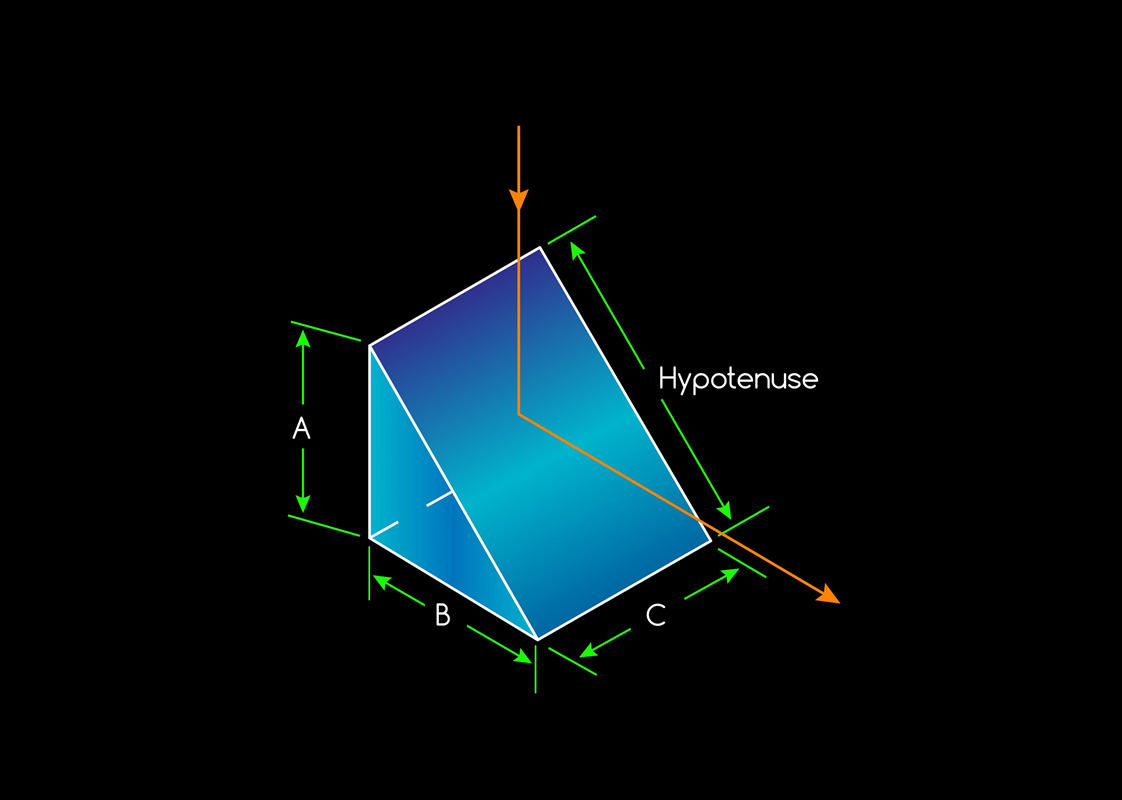

Right Angle Prism Mirrors reflect light at a 90° angle. Mirror applications which require precision alignment commonly utilize Right Angle Mirror Prisms due to their highly accurate yet simple to mount structure. They are ideal when higher performance is required especially when compared to a plate mirror. HeliOS provides Right Angle Prism Mirrors with a hypotenuse coating of enhanced aluminum for visible range applications in the 450-650nm region, or a protected silver coating for high reflectivity in VIS-NIR from 450-2000nm range, in a variety of sizes and lengths.
Precision Optical Components Produced To Your Specifications
| Standard Specifications | |
|---|---|
| Material | N-BK7 |
| Dimension Tolerance | +0/-0.15mm |
| Angle Tolerance | ±3 arc seconds |
| Bevel | Max 0.3mm x 45° |
| Coating on legs | None, unless otherwise stated |
| Hypotenuse | As stated a) Enhanced Aluminium Ravg > 95% @ 400-700nm b) Protected Silver Ravg > 98% @ 400-2000nm |
| If your requirement is outside of our listed specifications, please inquire as our production facility can often quickly and affordably customize off-the-shelf components to a variety of sizes and shapes that will meet standard, precision, or high precision quality. | |
