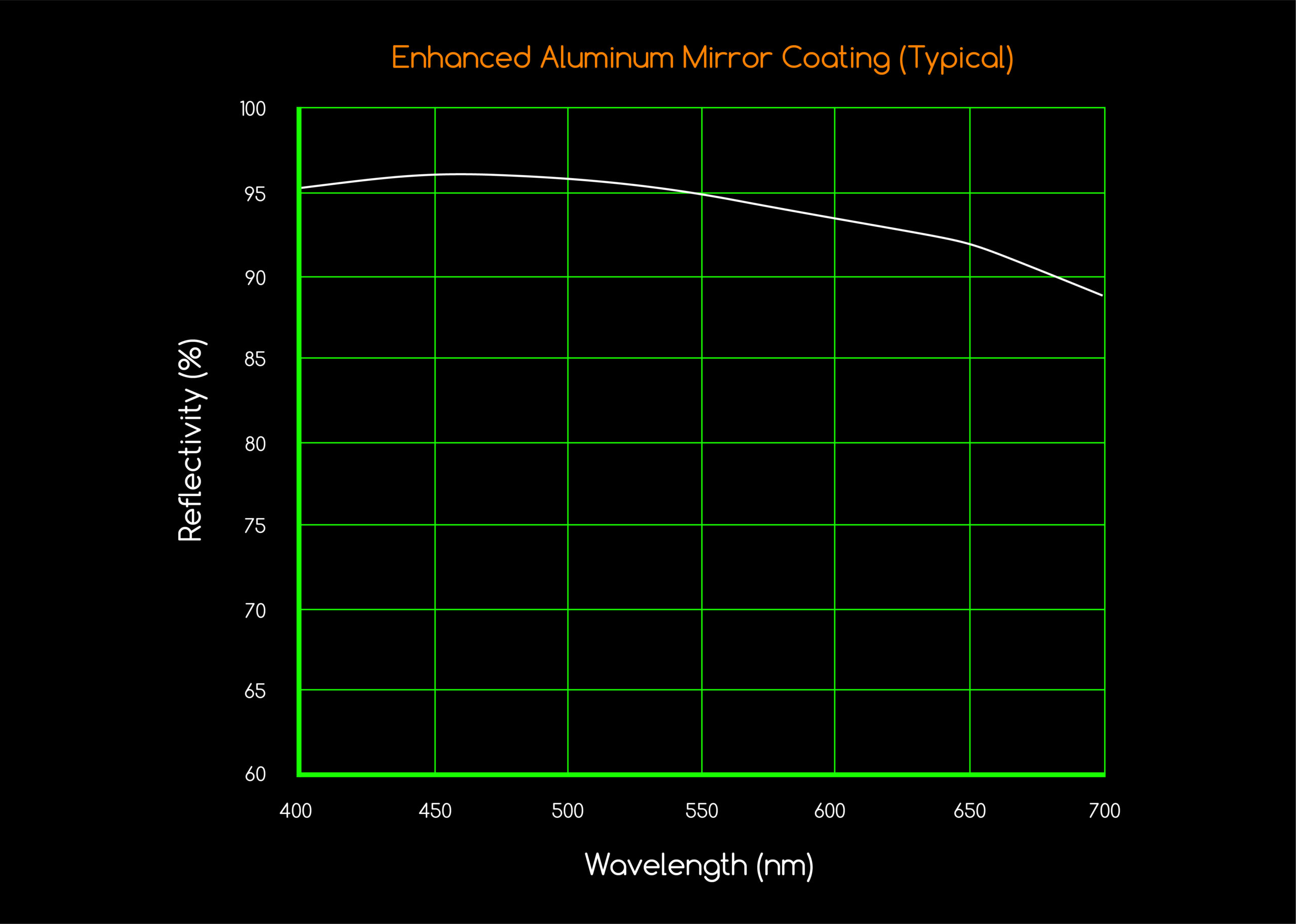

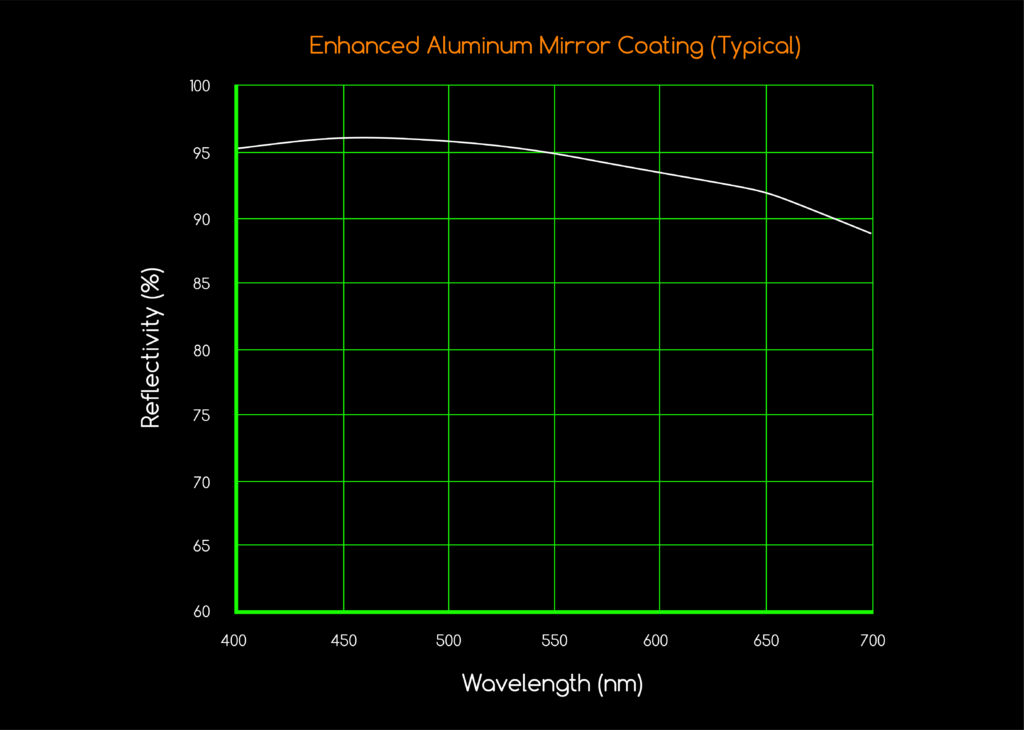

HeliOS’ Enhanced Aluminum Front Surface Mirror has a metallic aluminum base with multiple layers of dielectric film on top. This increases the overall reflectance and also protects the metallic aluminum from oxidation and scratching, resulting in higher optical quality and better durability. Our standard Enhanced Aluminum is ideal for applications requiring increased reflectance from 400-650nm with R average of 94% in the visible.

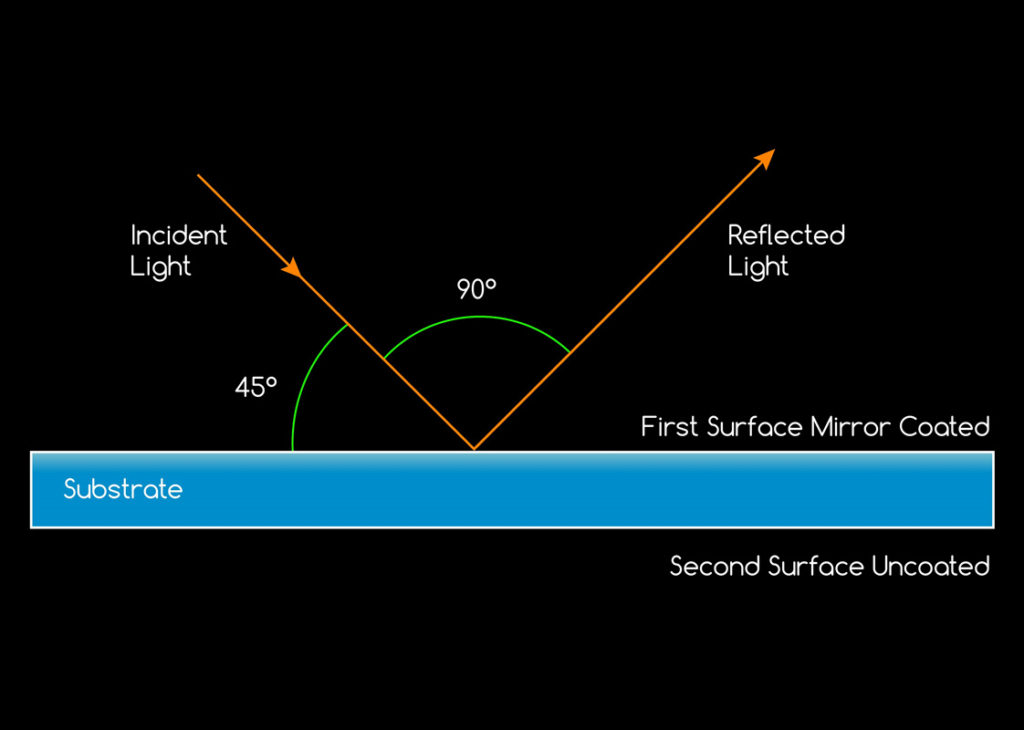

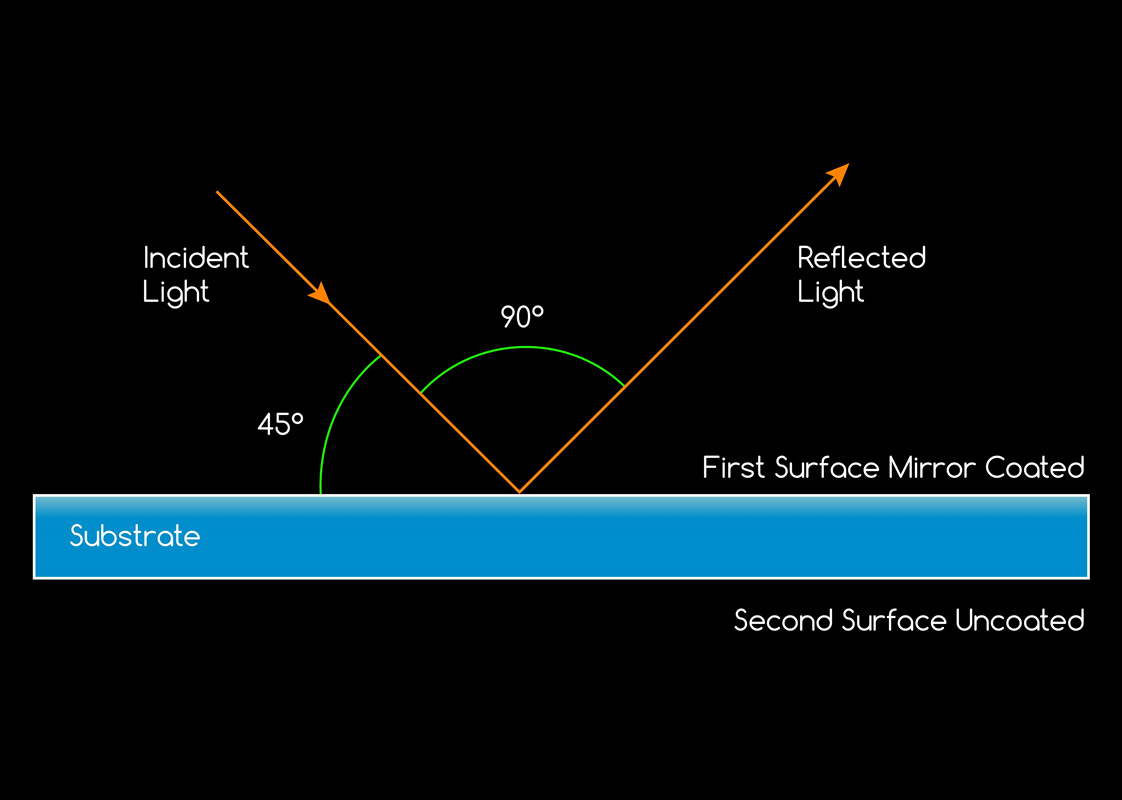

High reflectance front mirrors are commonly used at a 45 degree AOI for bending the light path of an image. We are able to provide round, square, elliptical and rectangular shapes in various different thicknesses.
Precision Optical Components Produced To Your Specifications
| Standard Specifications | |
|---|---|
| Material | Optical Glass |
| Dimension Tolerance | +0.1/-0.1mm |
| Thickness Tolerance | +0.2/-0.2mm |
| Scratch/dig | 60/40 |
| Flatness | 3-4 lambda per inch |
| Coating | S1: Enhanced Aluminium R avg >94% for 400-650nm S2: None |
| Notes | S2 Ground |
| If your requirement is outside of our listed specifications, please inquire as our production facility can often quickly and affordably customize off-the-shelf components to a variety of sizes and shapes that will meet standard, precision, or high precision quality. | |
